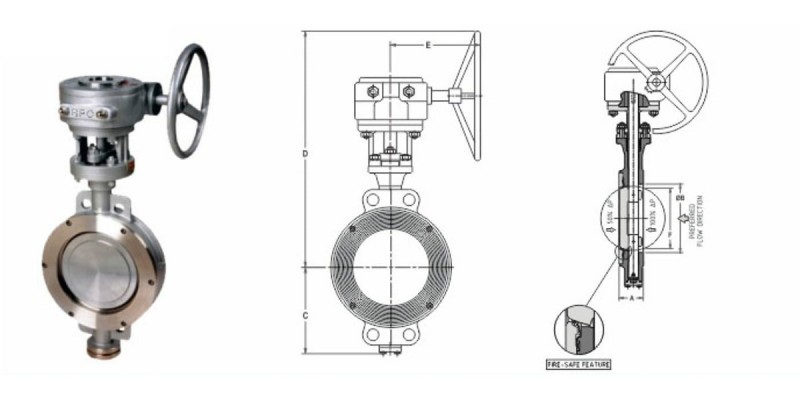

DOUBLE - ECCENTRIC HIGH PERFORMANCE BUTTERFLY VALVE

Applications

  • Oil & Gas
  • Sea Water & Brine
  • Hydro Carbons
  • Power Plants
  • Weak Acid & Alkali
  • Sour Service
  • Fertilizers
  • Petrochemicals
  • Oxygen Service
  • Exhaust Gas
  • Slurries
  • HVAC

Size Range          Wafer & Lugged

CLASS RATING SIZE RANGE
150 50mm to 600mm
300 50mm to 600mm



TESTING STANDARD DESIGN STANDARD TEST PRESSURE Kg/cm2 #150 #300

API 598 /

 API 609-CAT B HYDRO SHELL

 		 31 79
SEAT 22 58
AIR SEAT 7 7



COMPONENTS MATERIALS
BODY Carbon steel ASTM A216 Gr. WCB /  Stainless Steel ASTM A351 Gr. CF8 / CF8M
DISC Stainless Steel ASTM A351 Gr. CF8 / CF8M / CN 7M / Duplex
STEM Stainless Steel ASTM A56 core Gr. 630 (17-4 PH) / Inconel 625 / 316
STEM BEARING SS Backed PTFE
SEAT PTFE / GFT
BODY SEAL GRAPHITE
PACKING GRAPHITE

* OTHER OPTIONALS :

  • Other MOC as per customer requirement.
  • Locking arrangement.
  • Other flange-drillings, subject to confirmation.
