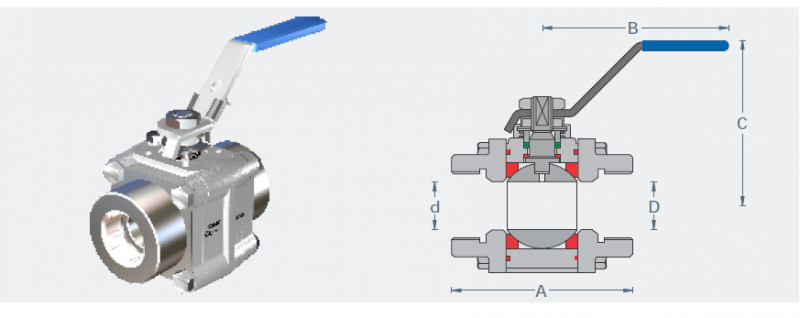

FLOATING BALL VALVE THREE PIECE
Applications
- Chemical Process Plants
- Fertilizer Plants
- Dyes and Pigments
- Pesticides
- Caustic Chlorine Plants
- Hazardous Fluids
- Acids and Alkalies
Size Range
| CLASS RATING | SIZE RANGE |
| 600 | 15mm to 50mm |
| 800 | 15mm to 50mm |
| TESTING STANDARD | DESIGN STANDARD | TESTING PRESSURE IN BAR | #800 | #600 |
|
EN 12266-1 |
BS EN ISO 17292 (BS 5351) | HYDRO SHELL |
210 | 153 |
| HYDRO SEAT | 156 | 113 | ||
| AIR SEAT (Soft Seat) | 7 | 7 |
| COMPONENTS | MATERIALS |
| Body / End piece | Forged Carbon Steel ASTM A105/Stainless Steel ASTM A182 Gr. F304/F316, ASTM A351 Gr. CF8/CF8M/ CF3/ CF3M/ CN7M, Duplex |
| Ball / Stem | Stainless Steel ASTM A276 Type 410/ 304/ 316/ A20/ Duplex |
| Seat | PTFE/ CFT/ GFT/ DELRIN/ NYLON/ PEEK/ METAL |
| Stem Washer | GFT/ Grafoil |
| Stem Seal / Body Seal | Grafoil |
| Lever | Steel with PVC Sleeve |
| Body Studs / Nuts | ASTM A193 Gr. B7/ ASTM A194 Gr. 2H |
| Surface Protection for Carbon Steel Valves | Base phosphating. Additional External Coating: Smoke Grey Synthetic Enamel |
