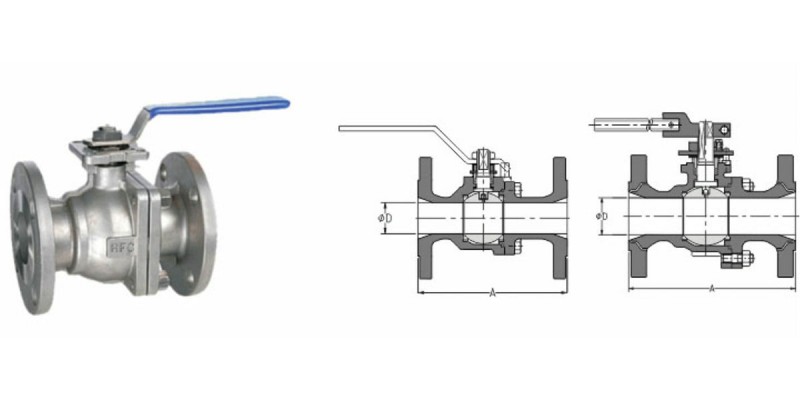

FLOATING BALL VALVE TWO PIECE
Applications
- Chemical Process Plants
- Caustic Chlorine Plants
- Fertilizer Plants
- Dyes and Pigments
- Hazardous Fluids
- Pesticides
- Acids and Alkalies
Size Range
| CLASS RATING | SIZE RANGE |
| 150 | 15mm to 200mm |
| 300 | 15mm to 200mm |
| 600 | 50mm to 100mm |
| TESTING STANDARD | DESIGN STANDARD | TESTING PRESSURE IN BAR | #150 | #300 | #600 |
|
API 6D,API598,BS EN 12266-1, ASME B 16.34, API 607 / 6FE |
API 6D,ASME B 16.34, BS EN ISO 17292 (BS 5351 ) |
HYDRO SHELL |
30 | 77 | 153 |
| HYDRO SEAT | 22 | 57 | 113 | ||
| AIR SEAT (Soft Seat) | 7 | 7 | 7 |
| COMPONENTS | MATERIALS |
| BODY / END PIECE | ASTM A216 Gr. WCB, LCB / ASTM A351 Gr. CF8 / CF8M /CF3/CF3M/CD4MCu/ CN7M / DUPLEX |
| BALL | CA 15 / CF8 / CF8M /CF3/CF3M/CD4MCu/ CN7M /DUPLEX |
| STEM | Stainless Steel ASTM A 564 TYPE 630 (17-4PH) / ASTM A276 Type 410 Hardened / 17-4 PH |
| SEAT | PTFE / RPTFE/DELRIN/NYLON/PEEK/METAL |
| METAL SEAT | Stainless Steel ASTM A276 Type 410 Hardened / ASTM A276 Type 316 Stellited |
| STEM SEAL | Grafoil / PTFE |
| STEM WASHER | RPTFE |
| BODY SEAL | Grafoil / PTFE |
| GLAND NUT | STAINLESS STEEL |
| BODY STUD / NUT | ASTM A193 Gr.B7,ASTM A194 Gr. 2H / ASTM A320 Gr.L7,ASTM A194 Gr.7 |
* Gear operation suggested dimensions on request.
* Valves upto 150 RB with lever.
* All sizes of Ball valves can also be provided with gear actuators (Electrical / Pneumatic / Flanged End with Ring Type Joint Facing Available.
* Due to continuous developments we reserve the right to change specifications without notice.
