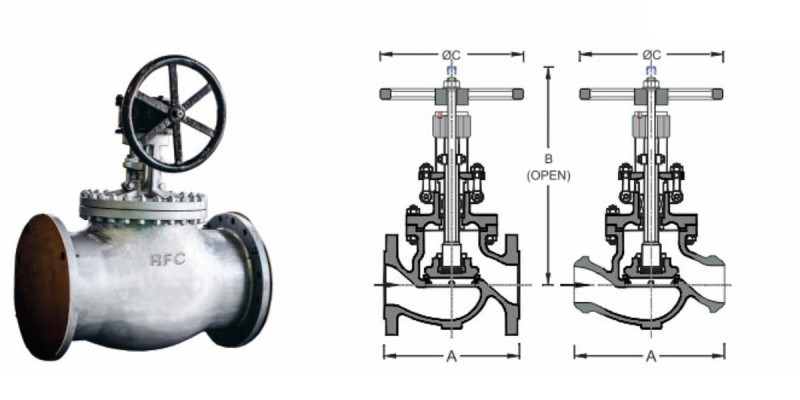

GLOBE VALVE
Size Range
| CLASS RATING | SIZE RANGE |
| 150 | 15mm to 350mm |
| 300 | 15mm to 350mm |
| 600 | 50mm to 300mm |
| TESTING STANDARD | DESIGN STANDARD | OPERATING DATA | TESTING PRESSURE IN BAR | #150 | #300 | #600 |
|
BS EN 12266-1/ASMEB16.34 |
BS 1873 /ASME B16.34 | Pressure range up to 104 bar (1480 PSI) 0 Temperature range up to +593 C/1100 F |
HYDRO SHELL |
30 | 77 | 155 |
| HYDRO SEAT | 22 | 57 | 113 | |||
| AIR SEAT | 7 | 7 | 7 |
| COMPONENTS | MATERIALS |
| BODY & BONNET | ASTM A216 Gr. WCB, A217 Gr. WC6 / WC9 / C5 / C12, A352 Gr. LCB, A351 Gr. CF8 / CF8M / CF3 / CF3M |
| DISK & SEAT RING | ASTM A217 Gr. Ca15 or WCB + 13% Cr. Facing, WC6 + Stellited, A351 Gr. CF8 / CF8M / CF8M / CF3 / CF3M |
| STEM , GLAND & BONNET BUSH | ASTM A276 TYPE 410 / 304 / 316 |
| YOKE SLEEVE | Ni-Resist ASTMA-439 Gr.D2 |
| GLAND PACKING | Premoulded Grafoil rings / Braided Non asbestos rings / PTFE |
| GASKET | Spiral Wound 304 / 316 with CAF / Graphite / PTFE filled |
| STUD / NUT | ASTMA193Gr. B7 / B16 / B8 / B8M / A194 Gr. 2H / 7 / 8 / 8M |
| HAND WHEEL | Carbon Steel / S.G. Iron |
| Surface Protection for Carbon steel Valves | Prime Coat : Chlorine free with modified alkyd resin unobjectionable in physiological and toxicological respects. Additional External Coating : Silver Streak aluminium Paint |
* CS/Alloy Steel discs and Seatrings will be over layed with 13% Chrome or Stellite 6.
* Optional Features : Additional soft seat, Bypass arrangement, Stem extension, cryogenic, IBR, Locking arrangement & Other as per customer requirement.
* Due to continuous developments we reserve the right to change specifications without notice.
