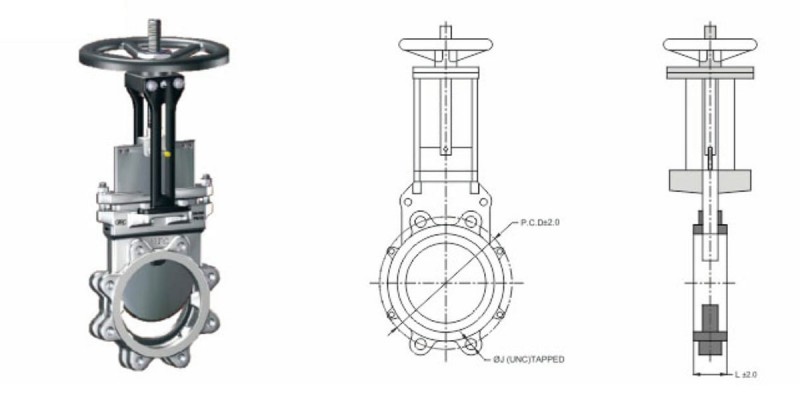

KNIFE EDGE GATE VALVE
Size Range
| CLASS RATING | SIZE RANGE |
| 150 | 40mm to 1000mm |
| TESTING STANDARD | MANUFACTURING STANDARD | HYDRO TEST PRESSURE IN BAR | |
|
Generally Confirming to MSS-SP 81 |
Generally Confirming to MSS-SP 81 | HYDRO SHELL | 5 Kg / Cm2 |
| SEAT | 2.8 Kg / Cm2 | ||
| COMPONENTS | MATERIALS |
| BODY | ASTM A 216 Gr. WCB / A 351 Gr. CF8 / CF8M |
| PILLARS | CARBON STEEL |
| GATE | SS 304 / SS316 |
| STEM | SS 410 / SS 304 / SS316 |
| BODY SEAL (NOT SHOWN) | NITRILE RUBBER / EPDM |
| PACKINGS (NOT SHOWN) | PTFE - IMPREGNATED ASBESTORS LAYERED WITH MOULDED RUBBER |
| HINGE PIN (SLOTTED TYPE) | STANDARD |
| YOKE SLEEVE (NOT SHOWN) | S. G. IRON |
| SLEEVE RETAINER | SS 304 / CARBON STEEL |
| HAND WHEEL | C.I. IS 210 Gr. FG 200 |
* Ends : Wafer and Lugged
* Optionals : Pneumatic Actuator, Limit Switch, Solinoid Valve, Air Filter, Regulator Etc.,
* Application : Pulp, Fibrous, Paper Pulp Slurries and Sludge
* Due to continuous development we reserve the right to change specifications without notice.
